Features
• Microcomputer control system allows each of the four battery slots to charge and display the voltage and charging capacity of each battery independently

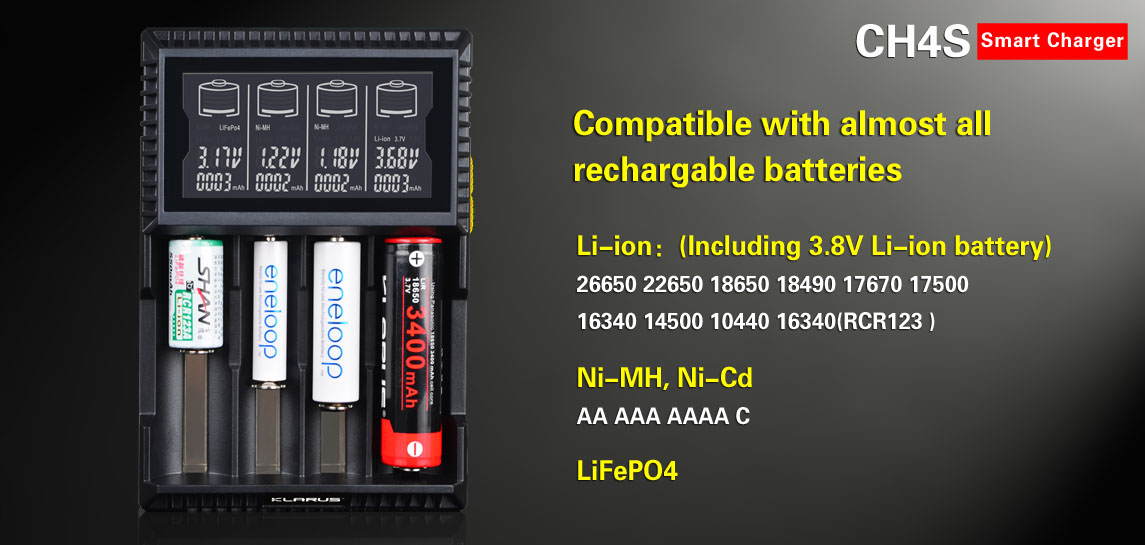

• Capable of charging 4 batteries simultaneously (Ni-MH/Ni-Cd/LiFePO4/3.7V Li-ion/3.8V Li-ion)
Li-ion：26650 22650 18650 18490 17670 17500 16340 14500 10440 16340 (RCR123A)
Ni-MH/Ni-Cd：AA AAA AAAA C

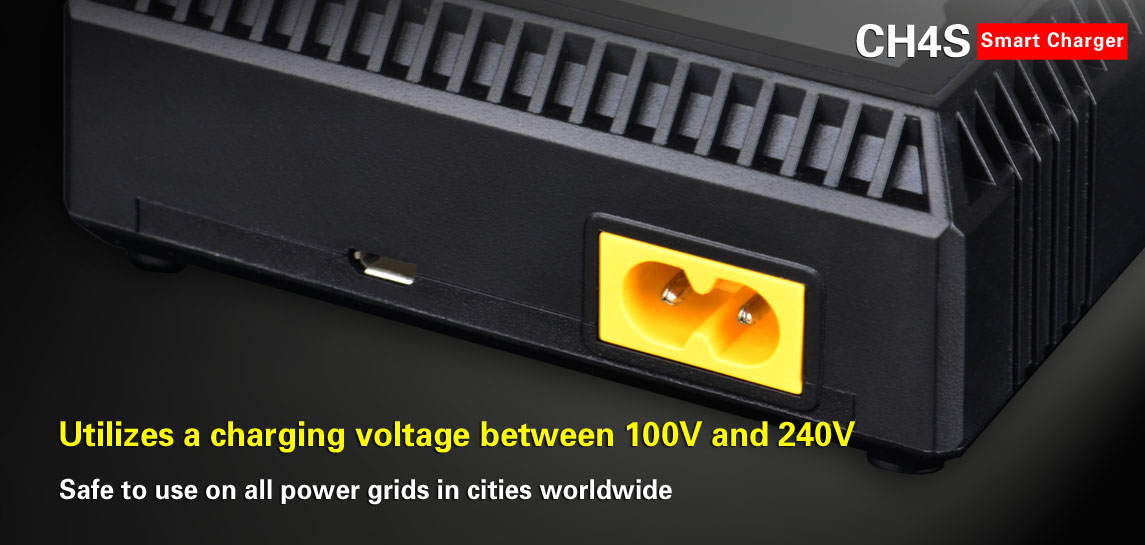

• Charging voltage is from 100-240V, suitable for use in ANY country worldwide

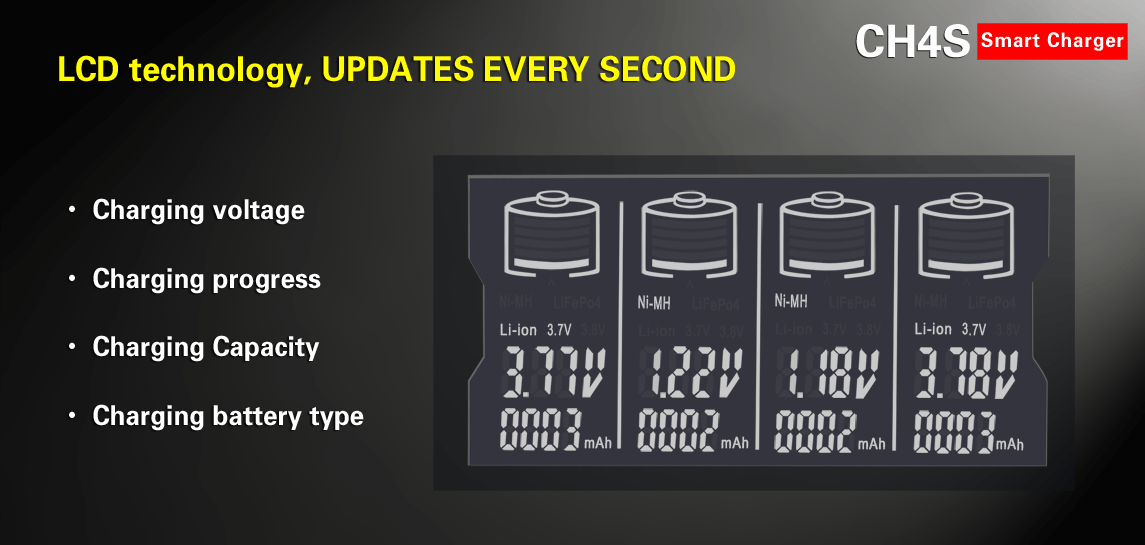

• LCD panel clearly displays battery’s charging progress, type, voltage and capacity

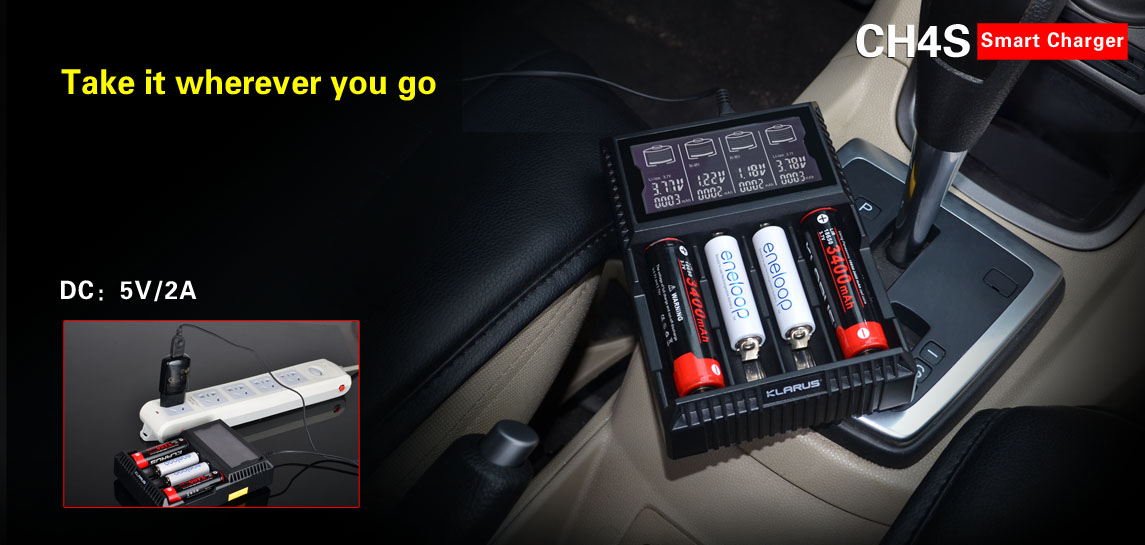

• Can be used to charge batteries either as a Car charger with DC (5V 2A) or as a home charger using AC

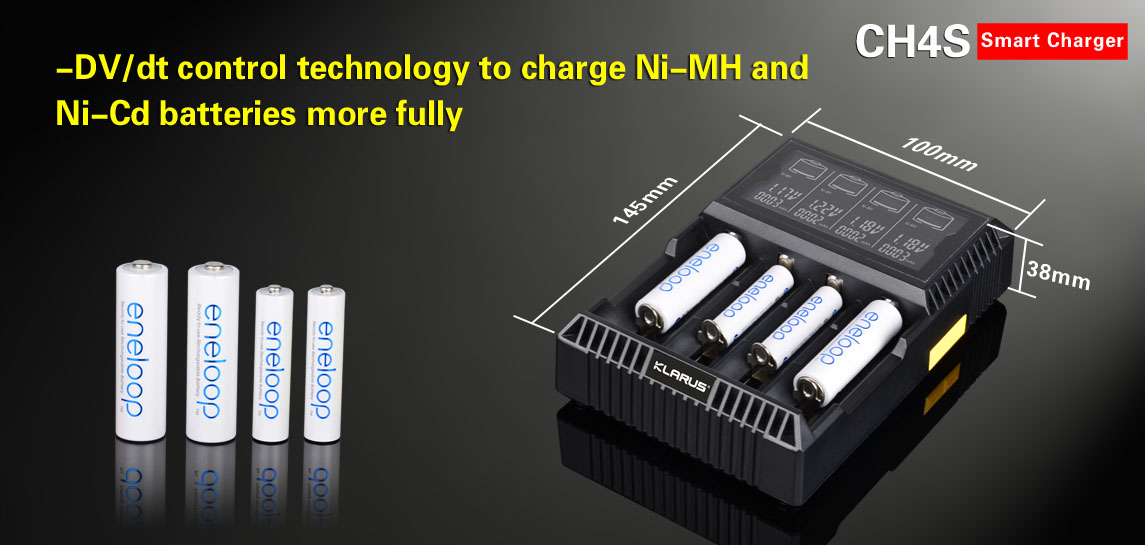

• DV Control technology improves the charging efficiency and shortens the charging time
• Built-in reverse polarity and short-circuit protection
• Features over-charge protection to prevent battery damage. Automatically stops charging when complete

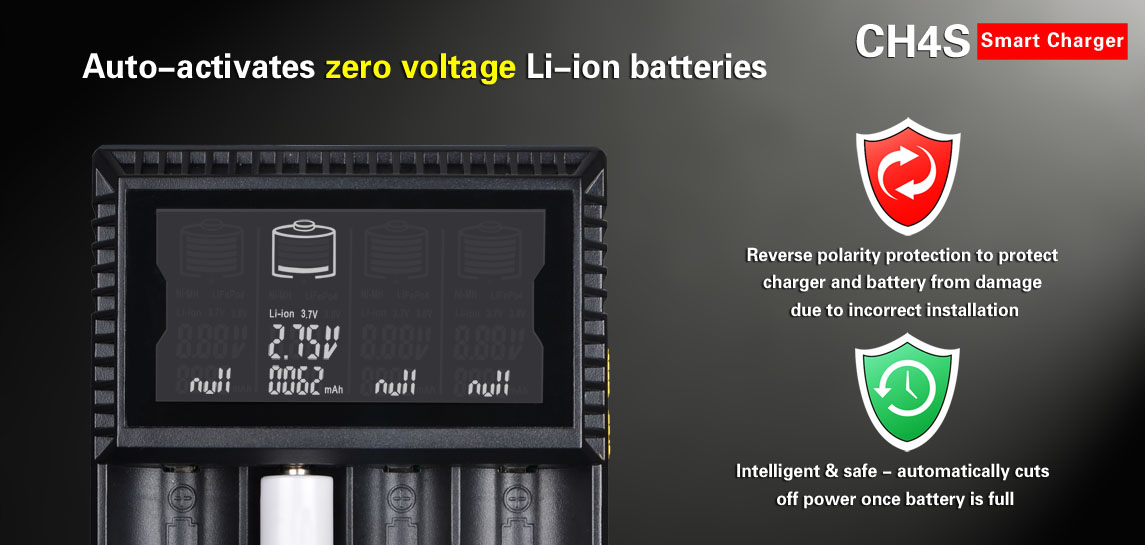

• Auto-activation function:
a). Automatically reactivates “zero voltage” short-circuit protected Li-ion batteries that have been completely drained of power
b). LCD displays “null” when attempting to charge a battery that cannot be reactivated

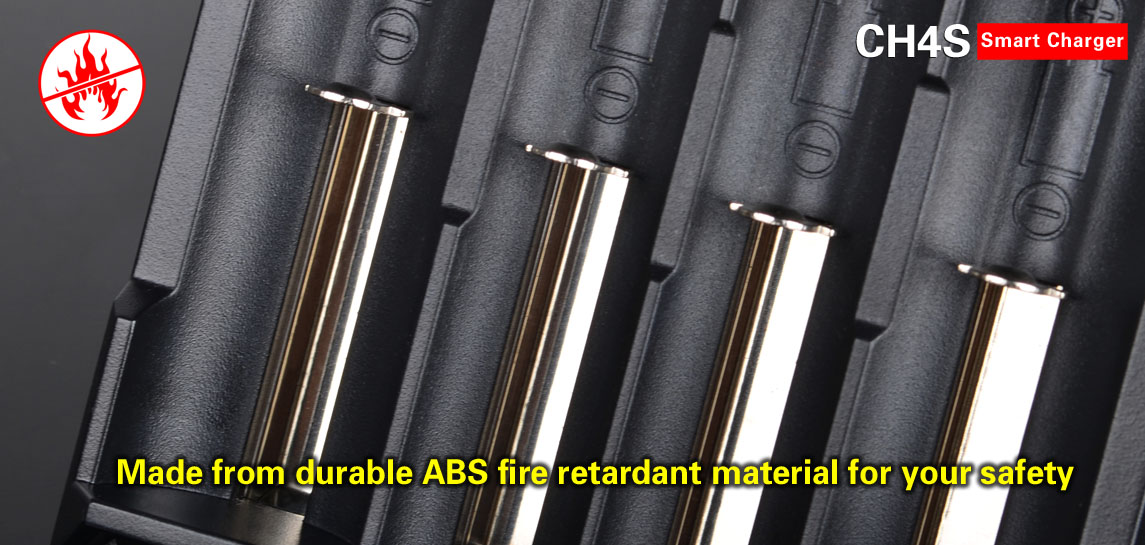

• Made from durable ABS (fire retardant/flame resistant) for your safety

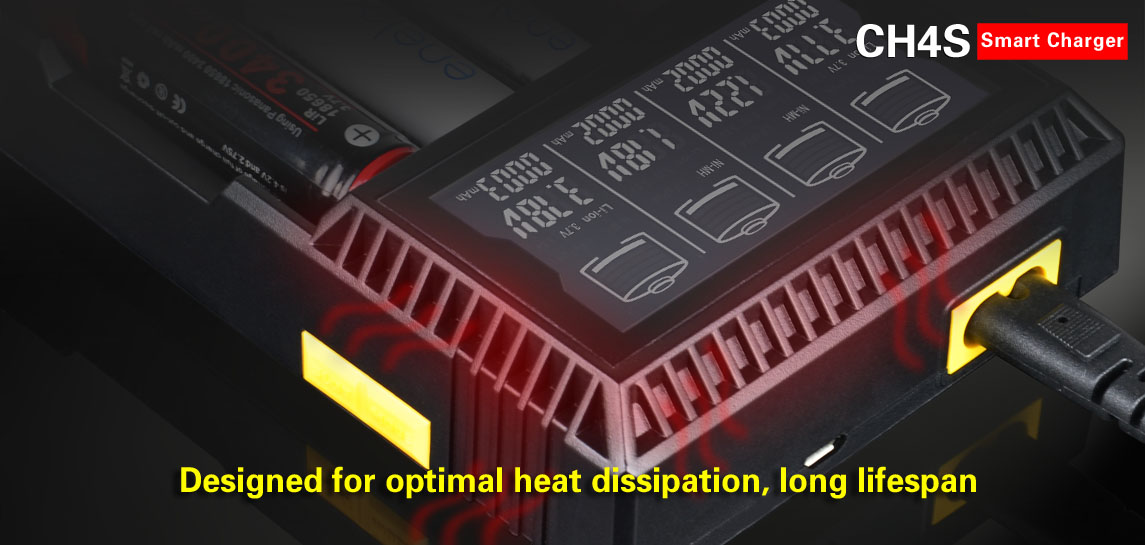

• Designed for optimal heat dissipation, long lifespan
Specification
• Input Voltage: AC 100-240V 50/60Hz
• DC 5V 2A
• Output Voltage: 4.35V ±0.02V/4.2V±0.2V/ 3.6V ±0.02V / 1.43V ±0.02V
Input Current: 1000mAh x 2/500mAh x 2 (Slots 1 and 4 current: 1000mAh z for large capacity batteries; Slots 2 and 3 current 500mAh for small capacity batteries)
• Size：145mm×100mm×3mm

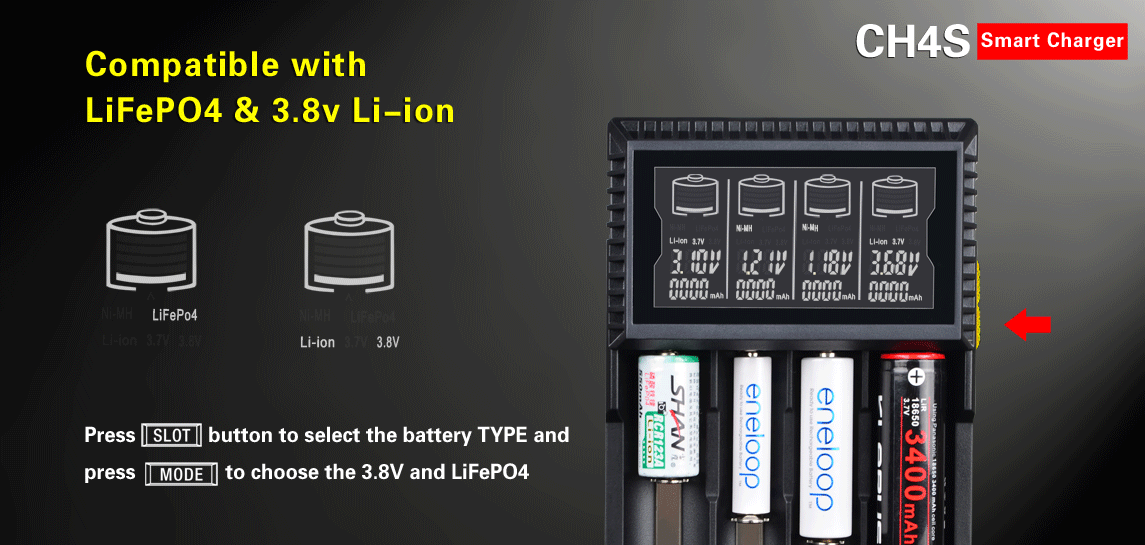

• Compatible with: LiFePO4, 3.7v & 3.8v Li-ion, Ni-MH, Ni-Cd
• Li-io：26650 22650 18650 18490 17670 17500 16340 14500 10440 \16340( RCR123 )
Ni-MH, Ni-Cd：AA AAA AAAA C
• Weight: 260g
• Optimal working environment: humidity 5-90% and temperature 0-35°C ( fully-laden regular activity)
• Storage temperature: 0°C-40°C
