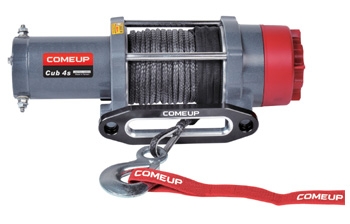

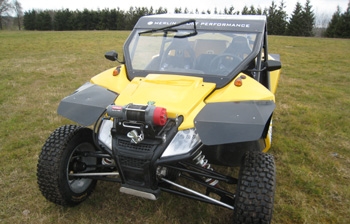

Cub 4s

Cub 4s
  • 4,000 lb (1,814 kg) line pull
  • Power in and power out
  • Winch drum centred avoids the interference of rope and provides streamlined appearance
  • Mechanical load holding and dynamic brake for 100% braking
  • High efficiency, low amp draw and sealed permanent magnet motor
  • Full metal 3 stage planetary gear train for greater pulling force
  • Sliding pin and ring gear clutch for rapid synthetic rope payout
  • Weather sealed contactor gives better water proof and lower amp. draw
  • E/e marked as of EU Directive 97/24/EC. EEC Type – Approval Number: e4*97/24*97/24/8/IX*0036*01
Category:

Description

Specification/Part Numbers
  • Part number:  PN 129410
  • Rated line pull: 1,814 kg (4,000 lb) single line
  • Motor:  800 w / 1.0 hp 12V permanent magnet
  • Gear train: 3-stage planetary 191:1
  • Clutch (freespooling): Sliding pin and ring gear
  • Brake: Mechanical & dynamic
  • Winch construction: Aluminum die cast housings and drum
  • Drum size: 55 x 119 mm (2.2” x 4.7”)
  • Control: Handlebar rocker switch
  • Rope type: Synthetic rope
  • Rope size: 5.5 mm x 15.2 m (7/32” x 50’)
  • Mounting bolts pattern: 76 x 168 mm (3” x 6.6”)
  • Winch weight (including rope) : 8 kg / 17.6 lb
  • Gross weight : 12 kg / 26.4 lb
  • Box dimension, (L x D x H) : 380 x 362 x 144 mm (15″ x 14.3″ x 5.7″)

Line Speed and Amp. Draw (1st layer of rope on the drum):

Line Pull,
kg / lb
Line Speed,
mpm / fpm
Amp, Draw,  A
12V
No load
6 / 19.7
15
227 / 500
3.9 / 12.8
45
454 / 1,000
3.4 / 11.2
70
680 / 1,500
3.1 / 10.2
90
907 / 2,000
2.9 / 9.5
120
1,134 / 2,500
2.7 / 8.9
150
1,361 / 3,000
2.4 / 7.9
180
1,588 / 3,500
2.2 / 7.2
210
1,814 / 4,000
2 / 6.6
230

Line Pull and Rope Capacity:

Layer of Rope
Pull by layer, kg / lb
Total Rope on the Drum, m / ft
1st
1,814 / 4,000
4 / 13.2
2nd
1,535 / 3,385
8.8 / 28.8
3rd
1,331 / 2,933
14.2 / 46.7
4th
1,174 / 2,588
15.2 / 50

Warning
Winches are not to be used for the lifting or moving of persons.
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 10 wraps from the drum.

Warranty
Each new winch is guaranteed against defects in workmanship and material defects for a stipulate period from date of purchase.
*Powersports Winch: Limited lifetime warranty for mechanical components,
One (1) year warranty for electrical components,
SYNTHETIC ROPES ARE NOT INCLUDED UNDER WARRANTY.

Dimension, mm/in:

Accessory:

Standard Accessories  Optional Accessories
  • Handheld rocker switch w/socket wiring
  • Hawse fairlead
  • Synthetic rope w/safety hook
  • Colour coded wirings and 6 gauge battery leads
  • Handsaver strap
